Power output:
200 W into 8 Ω, 370 W into 4 Ω
Input impedance:
75 kΩ @ 1 kHz (unbalanced input)
Frequency response:
–3 dB at 52 kHz, ref. 1 kHz (unbalanced input)
Total harmonic distortion:
<0.015% @ 1 kHz, 200 W into 8 Ω, <0.005% @ 1 kHz, 100 W into 8 Ω
Signal‐to‐noise ratio:
>120 dB (A-weighted), ref. 200 W into 8 Ω, >100 dB (A-weighted), ref. 1 W into 8 Ω
Mains supply:
110/120 V or 220/240 V, 50/60 Hz (factory set)
Power consumption:
<800 VA, 8 Ω load
Dimensions:
440mm (w) × 115mm (h) × 300mm (d)
Net weight:
14 kg -
Free Delivery within Mainland UK.
30-Day Money-back Guarantee
Returns Policy

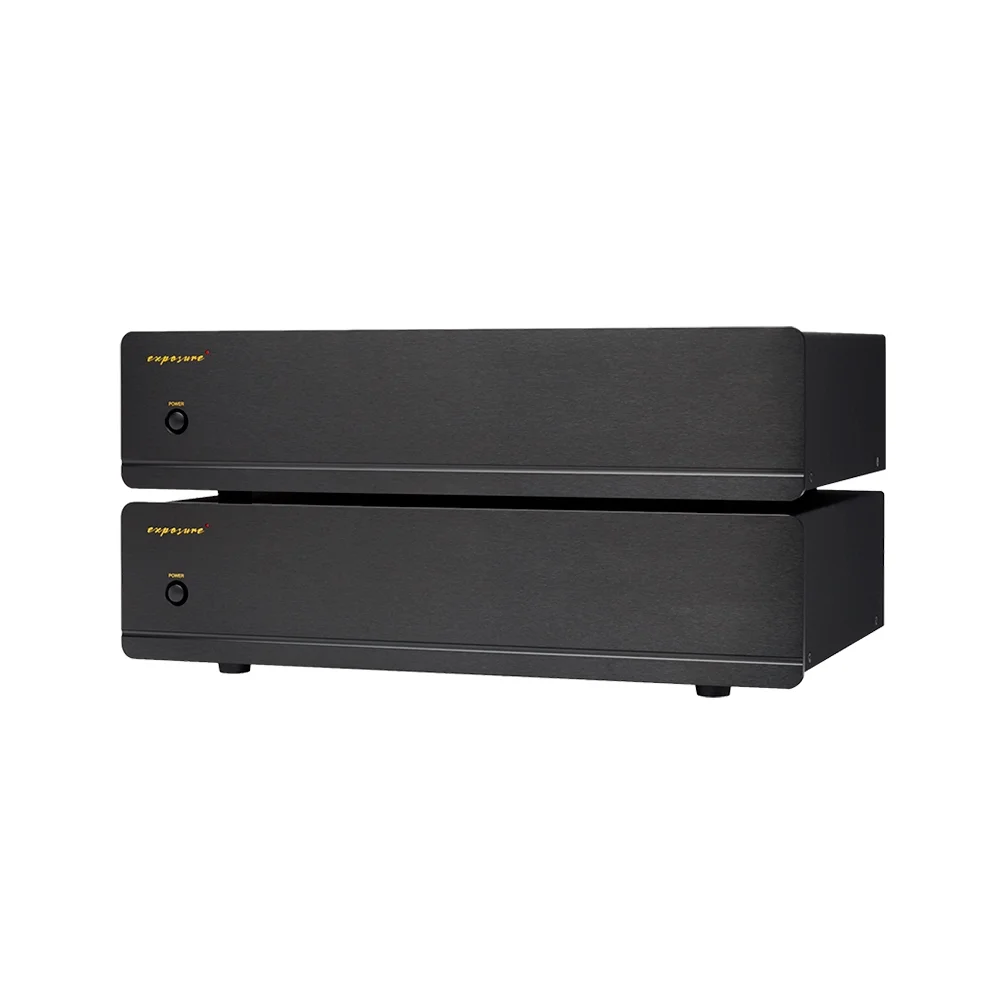

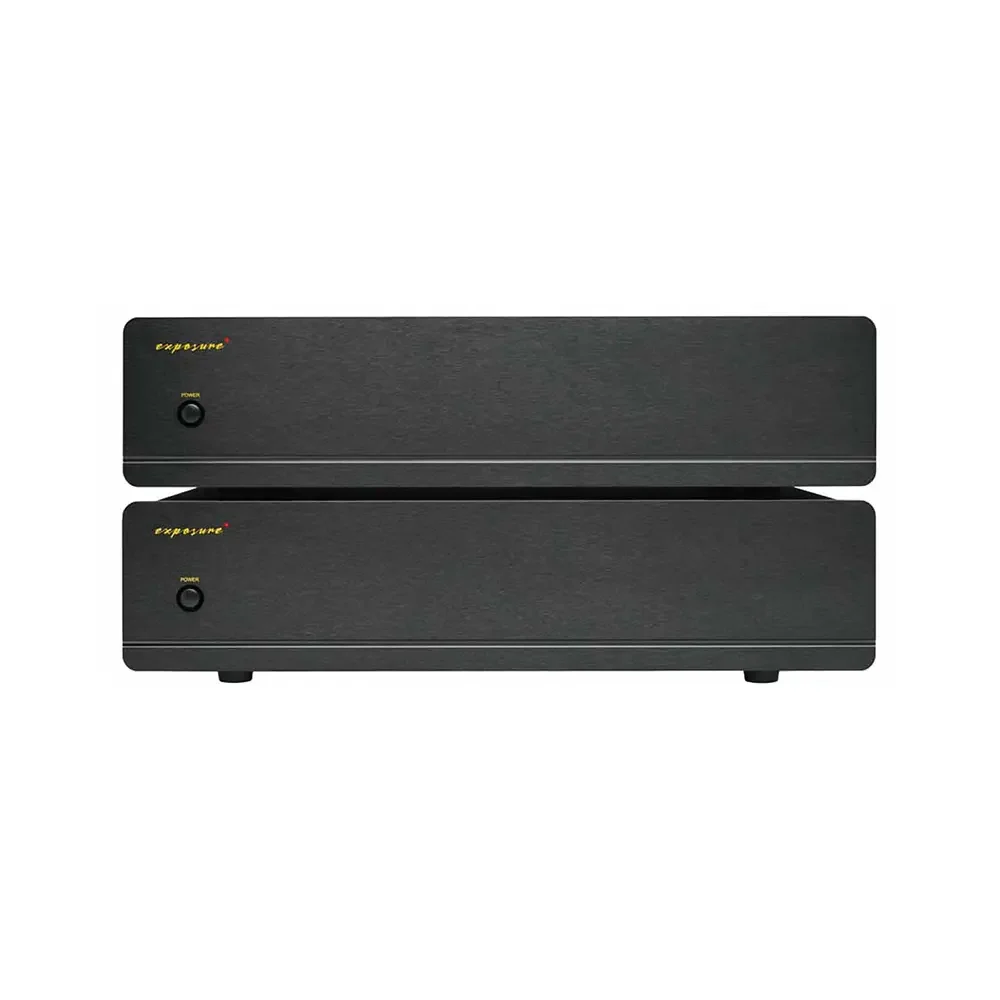

Exposure 5510 Mono Power Amps
Key features:
Power supply: Equipped with a large, custom-made toroidal transformer and high-quality screw-terminal smoothing capacitors.
Circuitry: All-bipolar transistor design utilising carefully selected components and fully DC-coupled topology. Built to drive difficult, low-impedance loudspeaker loads effortlessly.
Protection: Includes a non-invasive overload protection circuit and a thermal trip.

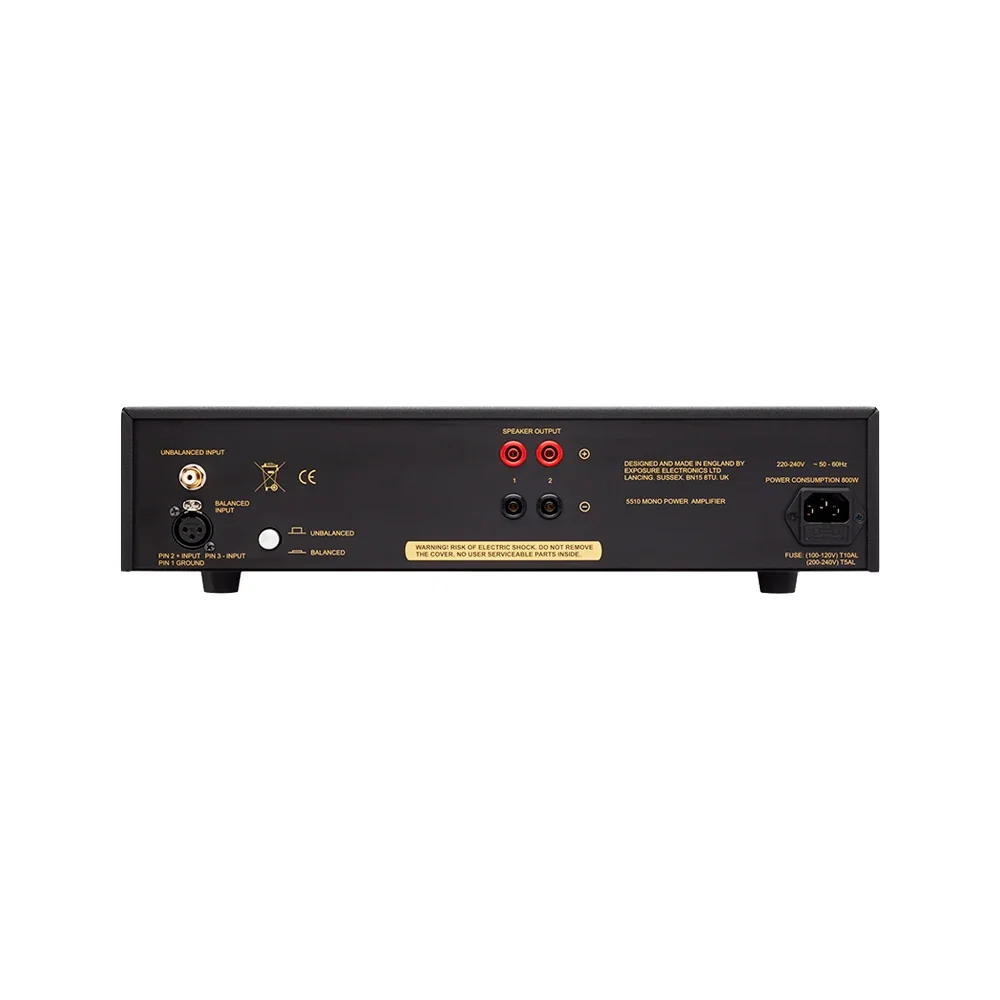

Connectivity: Balanced and unbalanced inputs. Bi-wire speaker outputs using high quality shrouded 4mm sockets.
Chassis: High-grade, resonance-controlling all aluminum casework, available in black.
Warranty: Backed by a 3-year manufacturer’s guarantee.
