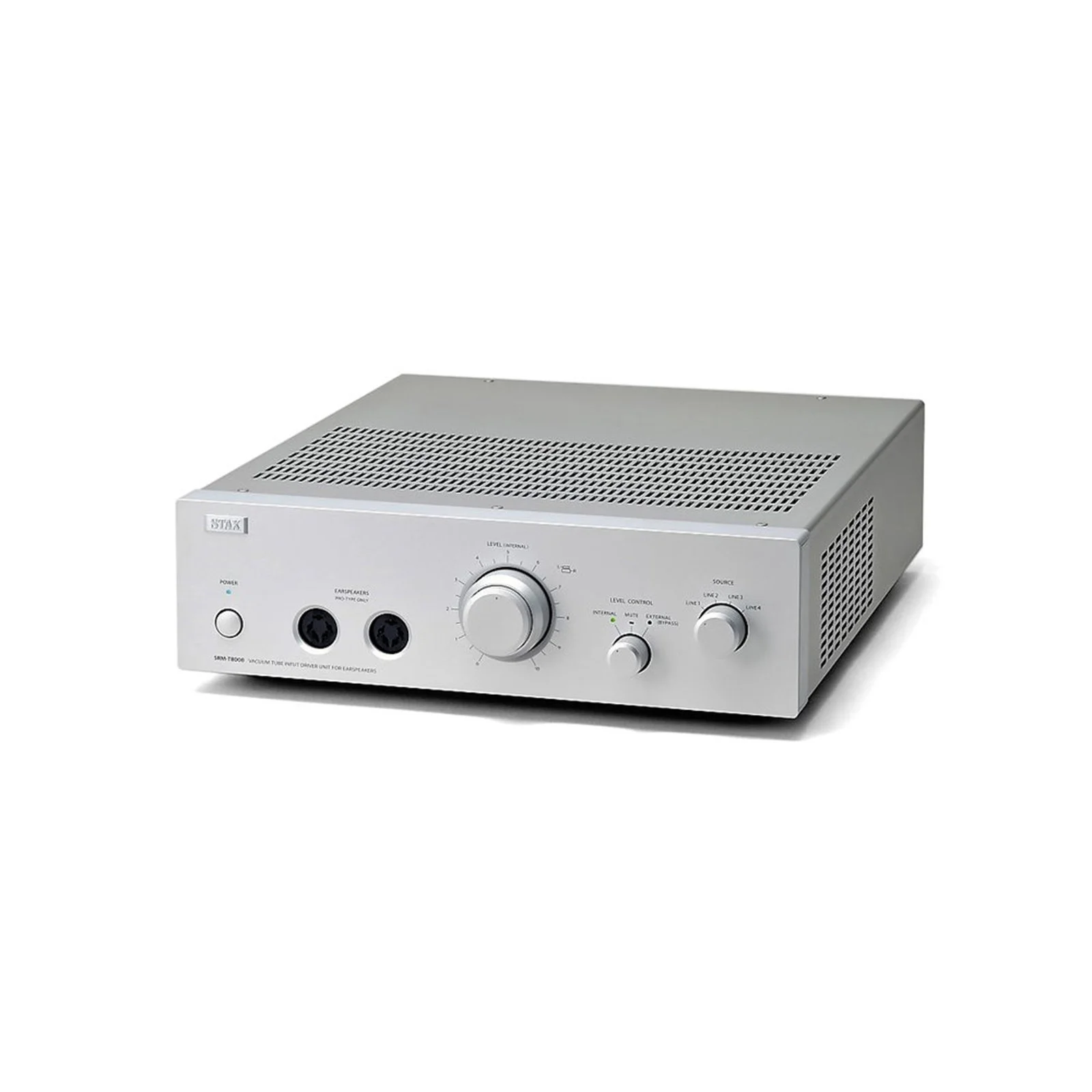

Stax SRM-T8000 Vacuum Tube Energiser

from £4,395.00

Driver unit for Stax Electrostatic Earspeakers

The Stax SRM-T8000 is a hybrid vacuum tube/solid-state electrostatic headphone amplifier designed to drive all Stax electrostatic headphones. It features a pair of 6922 vacuum tubes in the input stage, driving a Class-A solid-state output stage.

The amplifier has a frequency response of 1 Hz to 115 kHz, a THD of less than 0.01%, and a gain of 60 dB. It also has balanced and unbalanced inputs, as well as a volume control bypass option.

A high-end amp that’s designed to deliver the best possible sound quality from Stax electrostatic headphones.

Category Headphone Amplifier
Country Japan
Manufacturer Stax

Colour:

Driver unit for Stax Electrostatic Earspeakers

The Stax SRM-T8000 is a hybrid vacuum tube/solid-state electrostatic headphone amplifier designed to drive all Stax electrostatic headphones. It features a pair of 6922 vacuum tubes in the input stage, driving a Class-A solid-state output stage.

The amplifier has a frequency response of 1 Hz to 115 kHz, a THD of less than 0.01%, and a gain of 60 dB. It also has balanced and unbalanced inputs, as well as a volume control bypass option.

A high-end amp that’s designed to deliver the best possible sound quality from Stax electrostatic headphones.

Category Headphone Amplifier
Country Japan
Manufacturer Stax



  • Frequency response：1～115kHz per channel

    THD：<0.01% @1kHz per channel

    Gain：60dB

    Rated input level：100mV/100V

    Maximum output voltage ：470V r.m.s./1kHz

    Input impedance：Unbalanced 50kΩ/ Balanced: 50kΩx2

    Analog Input ：RCA x2、XLR x1

    Headphone output ：Stax PRO bias output x2

    Volume control bypass: Allows the use of an external preamp

    Vacuum tube: 6922 ｘ2

    Power consumption ：95W（58W when idle）

    External dimension ：320(W)×103(H)×395(D)mm / 12.6" x 4" x 15.6"

    Weight：7.3kg / 16.1 lbs

    Voltage: 120V/60HZ

    Warranty: 1-year U.S. limited warranty

    • Free Delivery within Mainland UK.

    • 60-Day Money-back Guarantee

    • Returns Policy

STAX SRM-TM8000

SRM-T8000 is Stax's latest flagship electrostatic headphone amplifier utilizing hybrid technology. It employs two 6922 in the input stage, driving a Class-A solid-state output stage. The vacuum tubes are isolated in a separate section made of a vibration-proof damper and shield cover to eliminate vibration and noise. The high-capacity large toroidal transformers and selected high-quality parts allow the highest refinement in sound.
